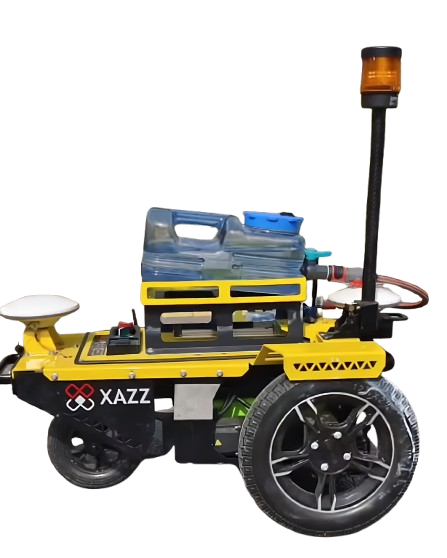

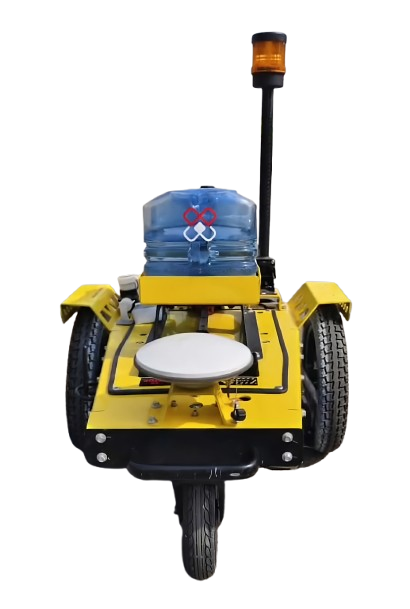

Autonomous Road Marking Robot: Product Overview
The Autonomous Road Marking Robot (Ray-Bot Series) is an intelligent pre-marking solution designed to replace manual road surveying. It has been successfully deployed in over 20 major highway projects across China, including the Shenhai and Lianxu Expressways.
By using advanced RTK and GPS algorithms, it solves the problem of labor shortage and low efficiency in road construction. One robot can increase overall efficiency by 8 times while reducing labor costs by 65%.
Key Features
- Extreme Precision (±2cm): High-precision positioning algorithms ensure straight lines and smooth curves. The lateral error is strictly controlled within 1-2 cm.
- Digital Workflow: Supports direct import of CAD construction drawings. The system automatically converts design docs into marking paths.
- Cluster Operation: Supports cloud-based management. Multiple robots can work simultaneously on the same road section to speed up the project.
- Safety First: Automating the pre-marking process keeps workers away from dangerous traffic, significantly improving site safety.
Technical Specifications
- Marking Speed: 0.7 m/s (approx. 2.5 km/h)
- Marking Medium: Titanium White Liquid / Water-based Paint
- Tank Capacity: 5 Liters (Covers 3-5 km per fill)
- Battery Endurance: 10 Hours per charge
- Control Method: Remote Control + Mobile APP
- Working Scenarios: Highways, Urban Expressways, Airports, Large Parking Lots.
⚠️ Application Note: As this equipment relies on satellite signals (RTK+GPS), it is NOT suitable for tunnels, areas under bridges, or locations directly adjacent to skyscrapers where signals are blocked.
Global RTK Coverage: Works Where You Work
Worried about the GPS signal in your country? Don’t be.

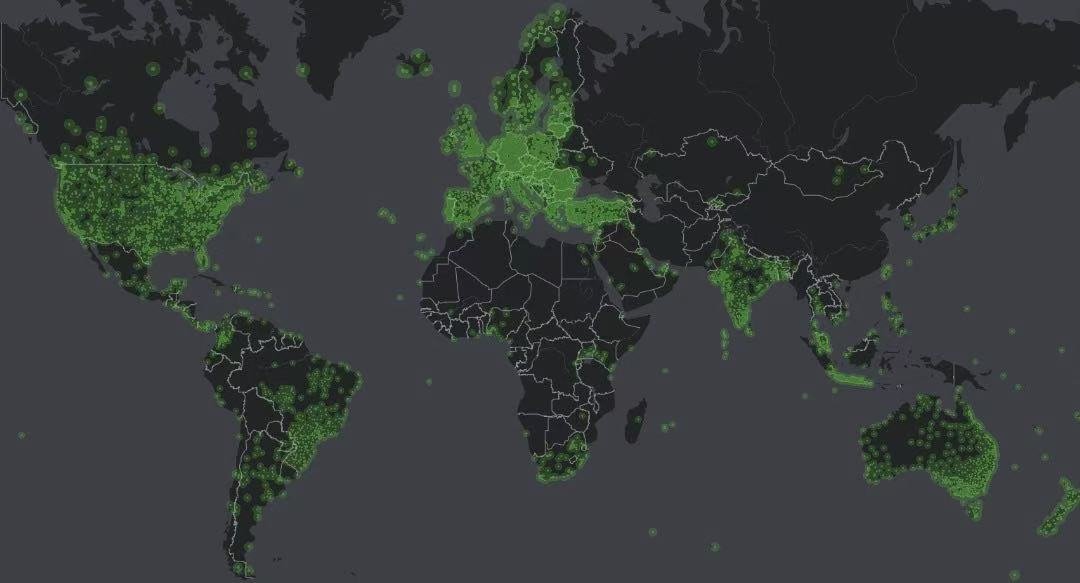

Green Means Go. The map below displays our global RTK signal coverage. Every Green Dot represents a verified working zone with strong signal reception.
Whether you are in Southeast Asia, Africa, or South America, our robot connects seamlessly to global satellites to ensure ±2cm precision. No complex base station setup needed in covered areas.
