Why Choose RayPro Mini Gold Wash Plant?
1. True Portability (Backpack Mining)
Weighing only 23kg, two people can easily carry it to remote mountain rivers or creeks where heavy machinery cannot reach.
2. All-in-One Solution
It combines a water pump, sluice box, and vibrating screen into one compact unit. The gasoline engine drives both the vibration and the water pump simultaneously.
3. High Recovery Rate
The sluice box comes pre-installed with professional gold mining carpet (moss) to capture fine gold particles effectively.
4. Adjustable & Flexible
Water Flow: Adjustable via a valve to suit different washing needs.
Screen Angle: The slope of the sieve can be adjusted for optimal material flow.
Sieve Mesh: Standard 8mm mesh (customizable based on your local raw material size).
Technical Specifications:
Feature Specification
Model RayPro-Mini-G
Capacity 2 – 3 Tons / Hour
Engine 2HP Gasoline Engine
Screen Diameter 45 cm
Screen Mesh Size 8 mm (Standard)
Total Weight 23 kg
Function Washing, Screening, Gold Separation
Application River, Creek, Remote Mountain Areas
Mining Equipment

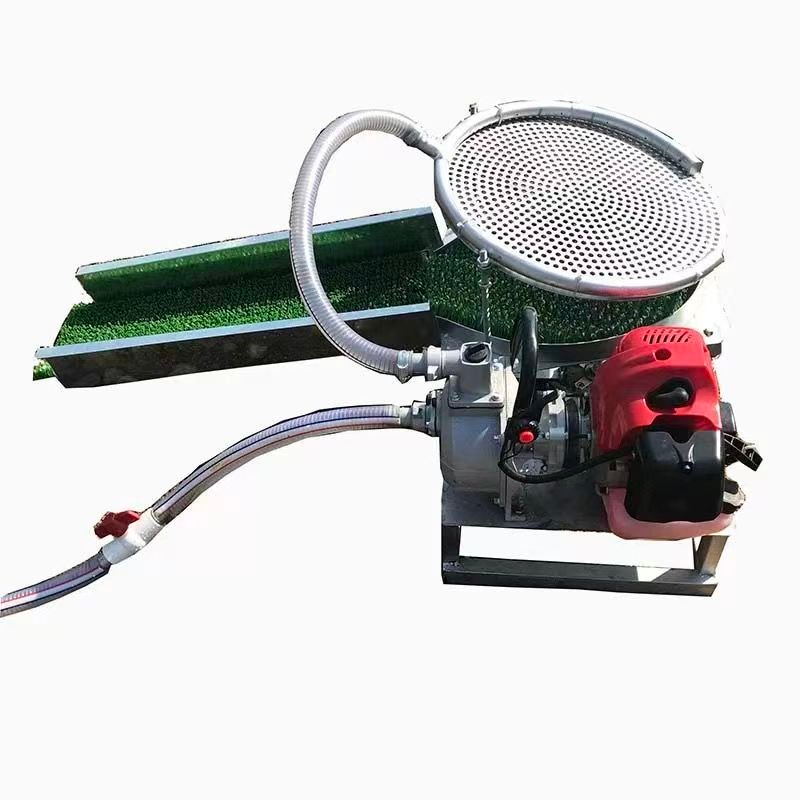

RayPro Mini Mobile Gold Wash Plant (Gasoline Engine)
Gold Mining Made Easy & Portable.
This 2-3 tons/hour mini wash plant is the perfect starter kit for alluvial gold mining. Powered by a gasoline engine, it works anywhere without electricity.
Capacity: 2-3 Tons/Hour
Power: Gasoline Engine (Honda/Loncin optional)
Weight: Only 23kg (Easy to carry)
